Rotary Knife Jig



Overview

Rotary Cutter Jig

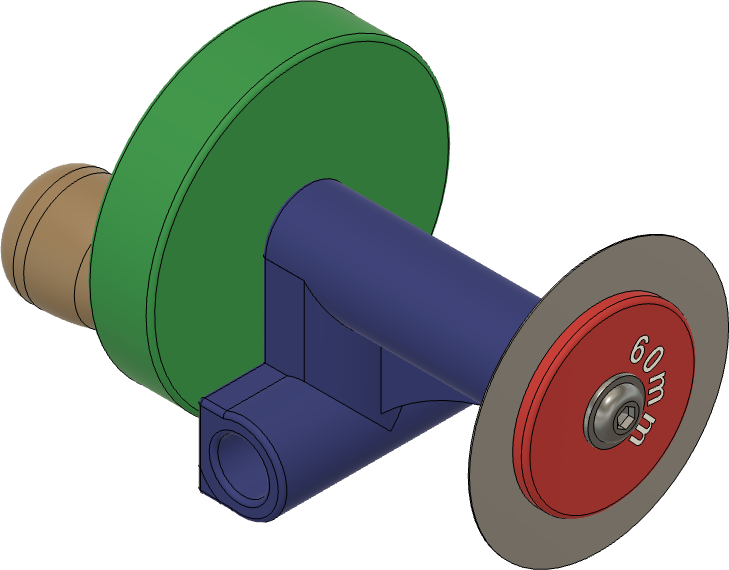

Sharpening a 60mm blade

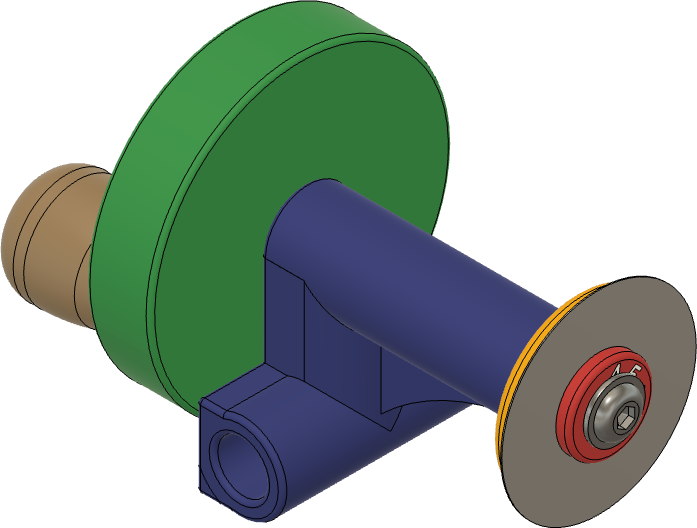

Sharpening a 45mm blade

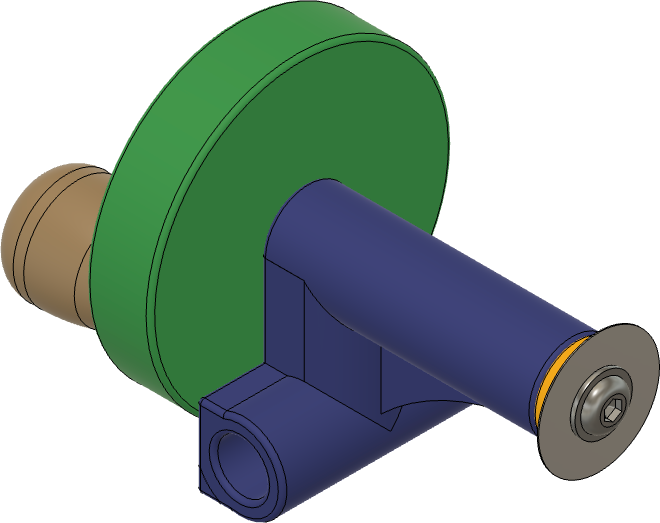

Sharpening a 28mm blade

Click on pictures to see larger images

I made the original version of this set as add-on parts for the Tormek SVD-185 or SVD-186 jig so I could sharpen rotary knives for my wife.

The pieces added are

  1. the hand wheel,
  2. the bolt to hold it in place, and
  3. the fender washers.

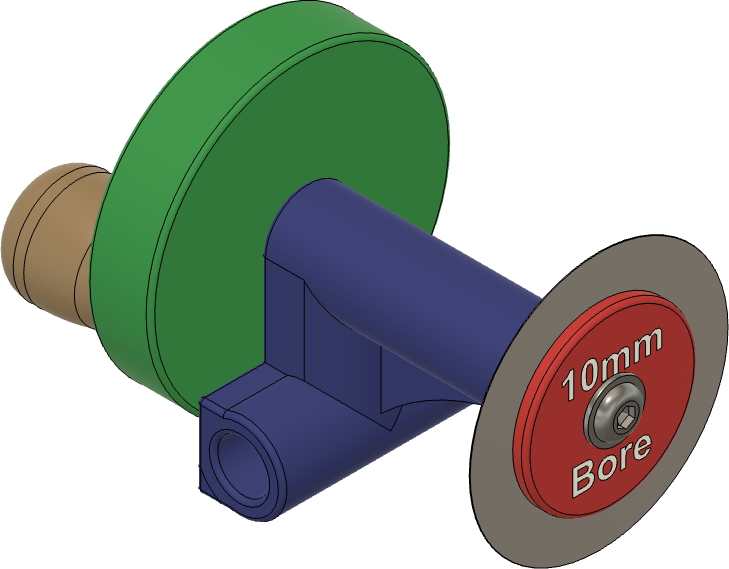

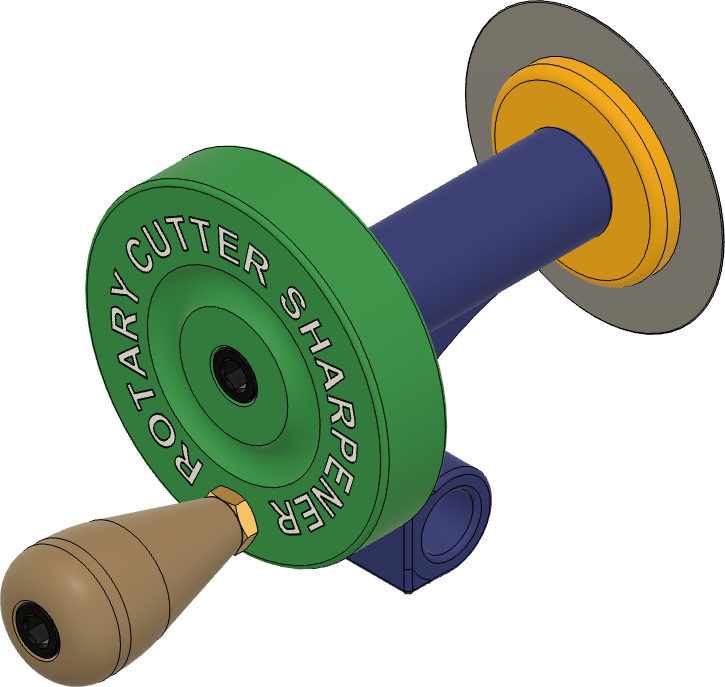

Since then, I've created one using mostly 3D-printed parts as shown in the pictures to the right.

Usage Notes

The process outlined on the Rotary Cutter page outlines the best approach.

Make safety a priority: It is not worth the risk.

This machine does not have a brain.

You must use your own.

Safety Precautions
  1. When affixing the blade to the 10mm screw with the nut, be quite careful to not cut yourself on the blade.
  2. When affixing the screw to the drill, be quite careful to not cut yourself on the blade.
  3. Do not use the drill’s power to tighten the nut.
  4. Be sure to run the drill so that the nut tightens against the blade. Running it in the opposite direction will cause the nut to loosen, allowing the blade to flop around and become dangerous. If this happens, let the drill and blade spin down and then re-tighten the nut
  5. When cleaning the honing compound off the blade, DO NOT do that whilst rotating the blade in the drill. You may get lucky a few times, but at some point, the spining blade will somehow cut you badly.


Sources for Buying One

You can purchase one from Colvin Tools.

Notes on Making One

You can 3D print your own parts. The components are:

  1. Common Parts
    1. Rotary-Cutter-Sharpener-Sleeve.3mf (the blue part in the pictures above)
    2. Rotary-Cutter-Sharpener-Handle.3mf (the green part in the pictures above)
    3. Rotary-Cutter-Sharpener-Handle-Knob.3mf (the brown part in the pictures above)
  2. Parts Used for 45 & 60mm Blades
    1. Rotary-Cutter-Sharpener-Shaft-45-60mm.3mf (the yellow part in the pictures above)
    2. Rotary-Cutter-Sharpener-Adapters-45-60mm.3mf (the red part in the pictures above)
  3. Parts Used for 28mm Blades
    1. Rotary-Cutter-Sharpener-Shaft-28mm.3mf (the yellow part in the pictures above)
    2. Insted of an adapter, an M6-1.0 screw is used to hold the blade in place (McMaster-Carr p/n 97654A379)

You will also need these parts:

Item Source Part Number Comments
Flanged Button Head Screw, M6-1.0 mm Thread, 10 mm Long, 18-8 Stainless Steel McMaster-Carr 97654A379 Used to attach the Sharpener Adapter (red part) & blade to the Shaft (yellow part). Also used to hold the 28mm blade to the shaft used for that blade.
Socket Head Screw, M6-1.0 mm Thread, 16 mm Long, Black Oxide McMaster-Carr 91290A321 Used to attach the Handle (green part) to the Shaft (yellow part).
Thin Hex Nut, M6-1.0 mm Thread Size, 3.2 mm High, Brass McMaster-Carr 93187A250 Used to attach the Handle Knob (brown part) to the Handle (green part). This nut is tightened on the screw against the Handle, and is adjusted to allow the Handle Knob to spin freely.
Socket Head Screw, M6-1.0 mm Thread, 55 mm Long, Partially Threaded, Black Oxide McMaster-Carr 91290A342 Used to attach the Handle Knob (brown part) to the Handle (green part).

Tools Needed

These tools are needed:

These tools are recommended:
