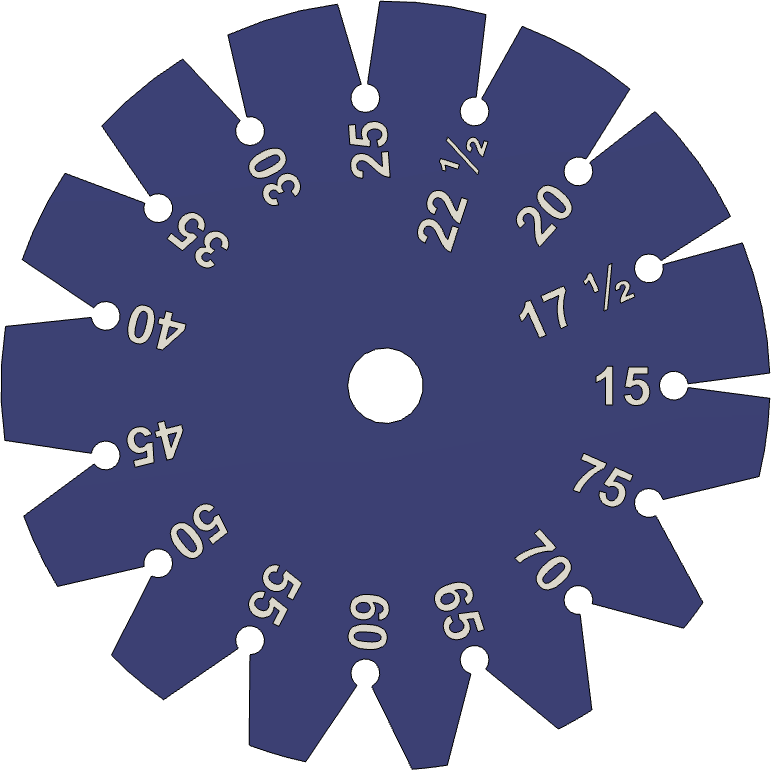

Angle Gauge

I made this jig using my 3D printer. It is a simple gauge for identifying angles on tools.

Sources for Buying One

You can purchase one from Colvin Tools.

Notes on Making One

The 3D printing file is available as both a 3MF and an STL. I have a printer which can switch filaments during the printing (Bambu Labs P1S with an AMS), and the 3MF file reflects that capability.

The STL file is also available if you would prefer to print it differently.
