Knife Awls |
Edge Angle
This tool is typically one of the tools in a Swiss Army knife.

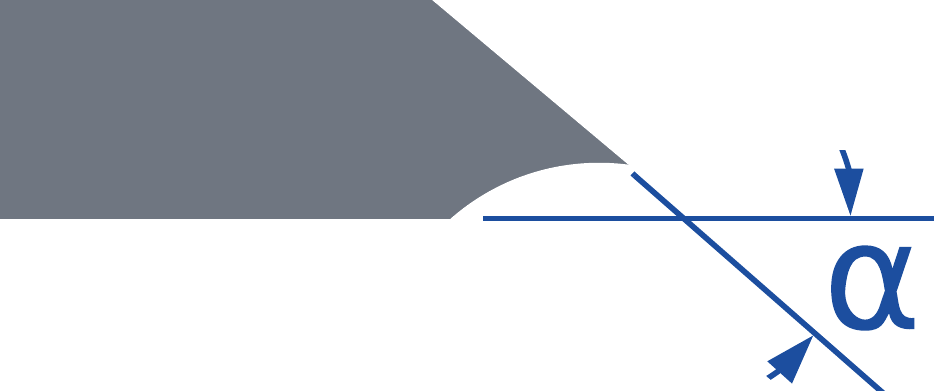

Guidelines shown below are for Included Angles (α).
No treasure made by human hands can match the splendor of a flowering tree.
Anonymous
|
General Guidelines |
||
|---|---|---|
|
Type |
α |
Notes |
| General | 50° | |
As noted above, this tool is typically one of the tools mounted in a Swiss Army knife. Experience has shown that the metal in these knives is easily ground. Care should be taken to not over-grind it.

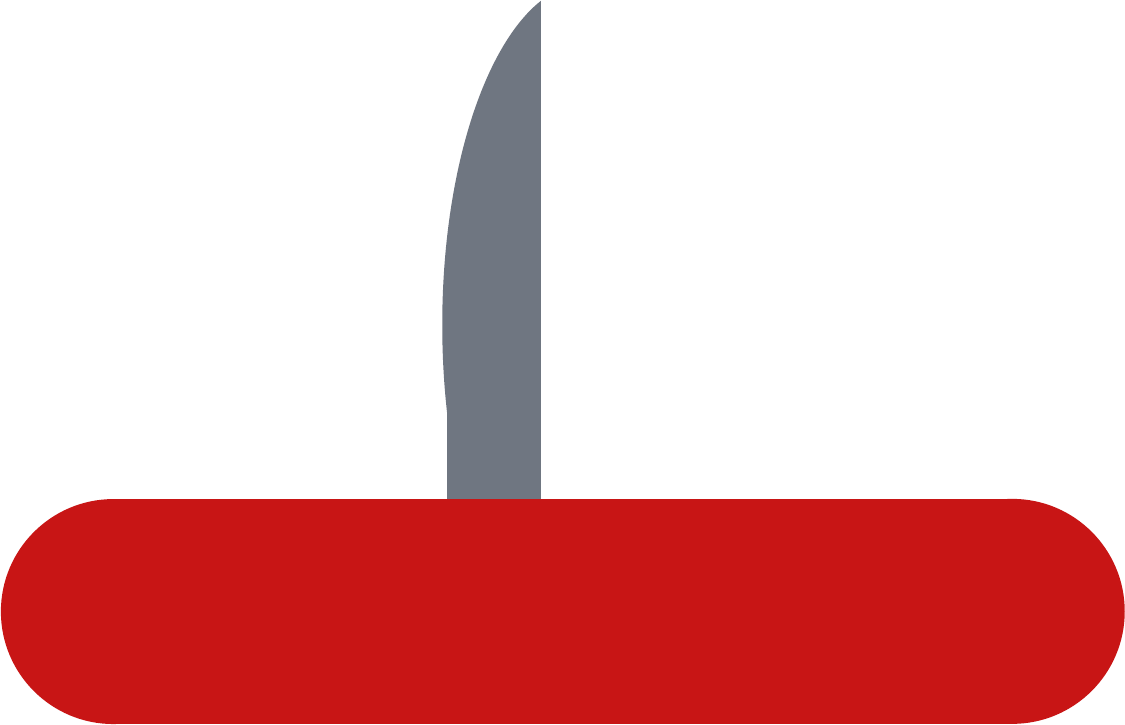

Awl on side |

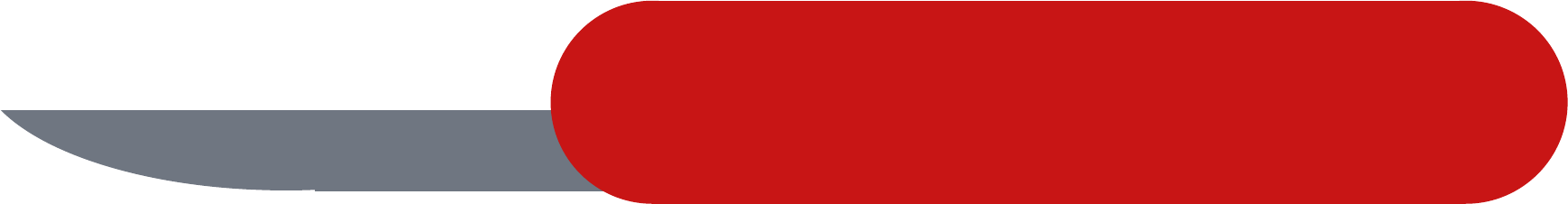

Awl on end |
|

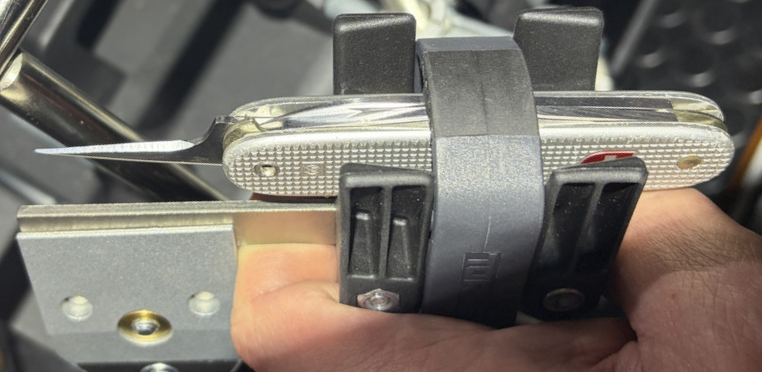

Holding the Victorinox Pioneer in a Tormek SVM-00 Image courtesy Hans Kruger |
||
Some variations have this tool mounted so that it opens on the end (as shown in the far left picture). Hans Kruger (Brock O Lee on the Tormek forum) noted that this can be sharpened using the Tormek SVM-00 Small Knife Holder. You should consider using the “Sharpie method” for identifying the sharpening angle.
Hans further noted that he used a Spyderco Ultrafine triangle stone for deburring, and finished with a light stropping.
If sharpening one of these awls which is mounted so that it projects from the side of the knife, you will probably have to sharpen this using a small, finely graded machinist’s hand file or a diamond file.
The shape of the grind used is a call best made by the tool's use, based on your own experience. Additional notes are available on separate web pages for Grind Profiles, and Micro / Secondary Bevels.
