Scraper Blade
|
|
The Scraper Blade's cutting edge is formed by one step on the grinder. The grinding action forms the hook.
Whilst using this tool, hone often with a diamond file.
|
General Guidelines
|
 |
Comments |
Recommended
Tormek Jig
|
| 65° |

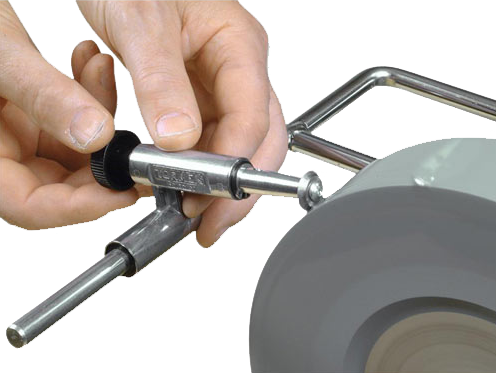

The Tormek SVD-186 or SVD-185 is easily used for this activity. As shown in the picture above, you will use the shaft rather than the tool holder.
Reference the Tormek handbook, Water Cooled Sharpening of Edge Tools if you have any questions.
|
SVD-186 R
|
|
Notes & Comments
If grinding this on a high speed grinder or sander, be sure to manage the temperature so that the temper is not lost due to overheating.
| High Carbon Steel |
Temperature control is critical for high carbon steel. Tempering will be lost in the steel if heated until it is blue (~550°F / 300°C). Cool by dipping as needed in water.
|
High Speed Steel
|
Cool by dipping as needed in water.
|
| Steel with Carbide Insert |
DO NOT cool by dipping in water. This will cause the carbide to crack due to shocks.
It is also recommended to use a high grit wheel for sharpening carbide as lower grits can cause cracks in the edge leading to it being far more crack-ridden and brittle. (Lower grits can be used for shaping the edge -- see also, Grindstones and Other Sharpening Media - Quick Selection Guide.) |
More Information
Books & Papers
Videos & Presentations
- Tormek Sharpening Classes: Part 5 - Woodturning Tools (YouTube video). Want to learn how you get your woodturning tools razor-sharp? In this week's sharpening class we take a closer look at the tools for the woodturner; Gouges, skews, parting tools, scrapers, cutters and more. Sebastien and Wolfgang will show you the methods for sharpening all these turning tools and how you achieve repeatable edges every time. Stay tuned and hit us with your questions during the stream.
- Tormek Live Sharpening Class - Part 9 - Sharpen a flat bevel with Tormek MB-100 on a diamond wheel (YouTube video). In this episode we learn how to use the Tormek MB-100 Multi Base to sharpen a completely flat bevel ▼, on the side of Tormek's diamond wheels DC-250, DF-250 and DE-250. For some tools, such as 🎻 luthier knives,🔪 Kiridashi knives, v-tools, chip carving knives and Japanese plane irons, a completely flat surface on the bevel is preferred over a slightly concave, which you get when you sharpen on the rounded part of the grinding wheel. For some people this is more of a personal preference.
Regardless of what might be the reason to want a flat bevel, Sèbastian and Wolfgang show how to achieve it with your Tormek wet sharpening system, They will also touch upon the differences between the different types of bevels.
- How to sharpen roughing gouges, skews & parting tools - Tormek SVS-50 Multi Jig - with Nick Agar (YouTube video). In this third episode, Nick Agar shows how to sharpen a roughing gouge with a few simple steps using the open seat of Tormek's Multi Jig SVS-50. Further, he shows how to sharpen a parting tool and a skew using the closed seat of the SVS-50. Nick also demonstrates how to use the Tormek Marker Method when setting the angle and how to sharpen a custom skew shape on the side of Tormek's Diamond Wheel using MB-100 Multi Base.
- Alan Holtham - Tormek SVD-186 Gouge Jig (YouTube video)
- David Peters - Tormek SVD-186 Gouge Jig Review and Comparison to the 185 (YouTube video)
- Sharpen gouges with the Tormek Gouge Jig SVD-185 (YouTube video)
- Jeff Farris - Sharpening with the Tormek SVD-185 Gouge Jig (YouTube video)
- Sharpen short edge tools with the Tormek Short Tool Jig SVS-32 (YouTube video)
- Tormek Turning Tool Setter TTS-100 (YouTube video)
- Tormek AngleMaster WM-200 (YouTube video)
Web Sites
- TurnAWoodBowl.com is a pretty good reference site for sharpening bowl gouges, especially as it regards the bevel angle you might select. (But it does have a LOT of advertisements on the site -- bit on the annoying side.)
