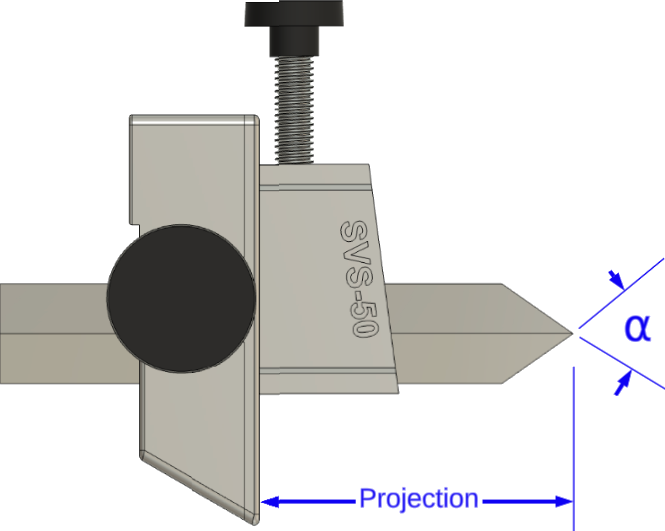

Parting tool held in the SVS-50 with Closed Seat

Guidelines shown below are for use with the Tormek SVS-50 Multi Jig. For the Diamond Parting Tool, Tormek recommends the Open Seat; however I have found that the Closed Seat is easier to use. The advantage to using the Closed Seat is that it is easier to align the tool with the USB, making it easier to ensure the tool is properly aligned relative to the grindstone. The disadvantage is that the tool has to be removed and the projection re-set to sharpen the other side. (Though this is not a difficult task.) Hand-craft signifies cunning, or sleight, or craft of the hand, which cannot be taught by words, but is only gained by practice and exercise. Joseph Moxon

General Guidelines
α	SVS-50			Comments
	JS	P	Hole
55°	0°	65 mm	B	click on the gray block to see more α can range from 50° - 85°.

Notes & Comments

Information regarding Grindstones

Edge Profiles

Some different edge profiles are discussed below.

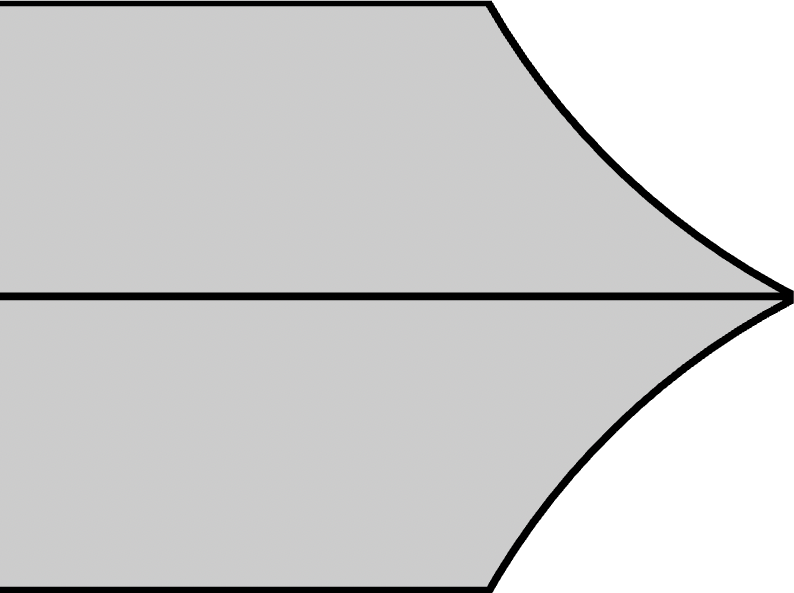

Diamond style

Convex edge on the bottom

The diamond style shown to the left is the shape for the tool when shipped by most manufacturers. The edges may be flat instead of slightly concaved (shown exaggerated here).

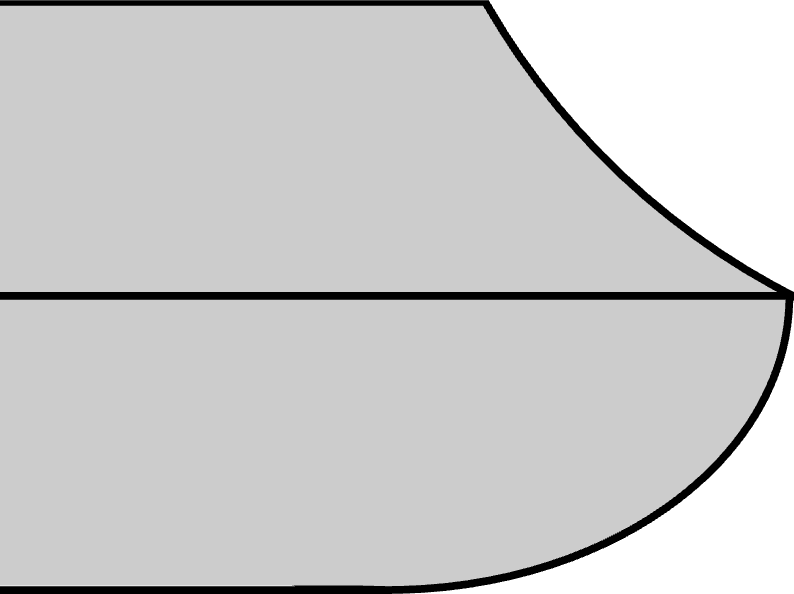

An alternative has a convex edge on the bottom edge. This is shown in the 2nd picture to the left.

The advantages to this approach are: the added metal below the center line provides better support for the cutting edge, reducing vibration at the tip, this shape does not burnish the wood as quickly as the traditional shape, and the tool is kept sharp longer.

The disadvantages to this approach are: this shape will not be as sharp (as the α will be larger), this tool shape cannot be flipped to allow the turner to use the the other side. This is useful when wood builds up on the edge's surface (as it does with oily woods like padauk), and it also does not allow for usage in as close a quarter (i.e., when using the tool like a bedan to cut at a rotated angle).

Setting the projection

Setting the Projection

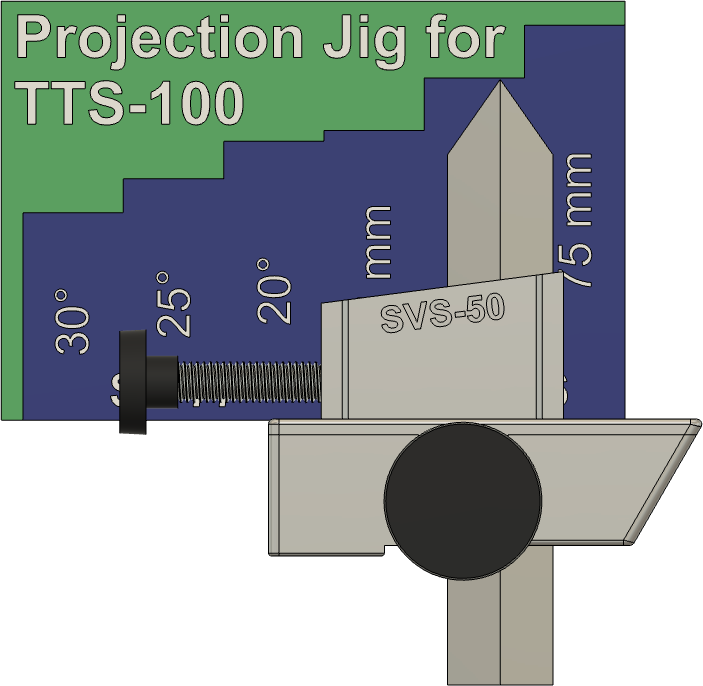

The TTS-100 or the Projection Jig can be used to set the projection. (The color of the top of the Projection Jig is shown green for clarity.)

The picture to the right shows that projection being set.

Using the Open Seat on the SVS-50

If using the open seat, it is recommended to not move side-to-side with the tool's edge engaged with the grinding surface. Instead, move to a position, ensure the SVS-50 is aligned with the USB, and then raise the handle to engage the tool with the grinding surface.

If you want to move use a different part of the grinding surface, lower the handle first, and then repeat the above-listed instructions.

More Information

Books & Papers

• Alan Lacer wrote an article for the AAW titled "Learn to Sharpen Your Turning Tools" where he recommended 50° (25° per side) for the edge.
• Some information presented is from the Tormek handbook, Water Cooled Sharpening of Edge Tools, © Tormek AB.
