Garden & Other Hoes



Image not found
Image not found

Edge Angle

I recommend sharpening the edge closer to the user as it makes the angle for using the tool easier, i.e., the user can stand more upright. If the other edge is sharpened, the user will have to bend down to use it, and the joy of gardening will be lost.


Some hoes have more than one edge to be sharpened. In those cases, each edge can be sharpened at a different angle, and thusly there is more than one angle specified on this page (i.e., α1, α2, & α3). The use of differing angles is not necessary, but is recommended, and notes are given for the recommendations.


A 6" smooth cut machinist’s hand file is useful to carry in your gardening tools box. Use it to resharpen the hoe as needed throughout the gardening activity.

The best fertilizer in the garden is the gardener's shadow.

Unknown


In the pictures in the table below (except for the hoop hoe), the bottom side of the picture is the user's side of the hoe.

General Guidelines
Purpose User Stroke α1 α2 α3 Notes
Cape Cod Weeder

Image not found

Pull 25° 35° n/a
Image not found

This is a baby version of a Warren Hoe with a head which is only about 2” wide.

This hoe has two edges to be sharpened, opening up some nice opportunities for the gardener as one side can be at a different angle than the other. As with the Warren hoe, sharpening one side at the recommended 25° and the other at 35° makes it a more versatile tool.

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. If sharpening the shorter handled hoe, consider sharpening the under side if the angle for use of this hoe merits it.

Depending on the user's handedness (left vs. right), the values for α1 & α2 could be swapped for easier use.

Also known as or called a Drill Hoe or Pointed Cultivator Hoe.

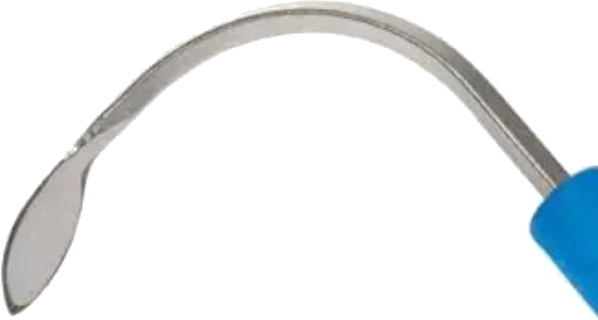

CobraHead Hoe

Image not found

Swung 35° 35° n/a
Image not found

This tool gets swung by the user to dig up problematic weeds.

This hoe has two edges to be sharpened, but I recommend keeping them the same.

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. The shorter handled version can have higher values, up to 40°, but the longer handled vershion should not have such a dull angle.

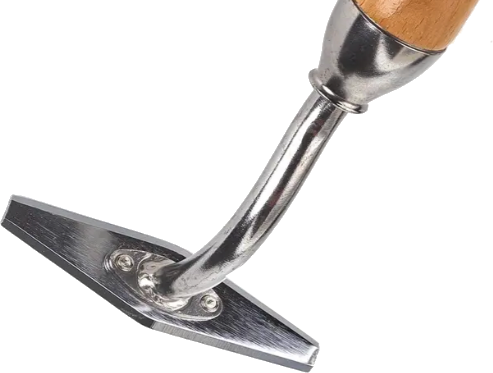

Diamond Weeder

Image not found

Pull & Push 25° 25° n/a
Image not found

This tool is a scarifier, used for cutting the weeds close to the dirt.

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. The shorter handled version can have higher values, up to 40°, but the longer handled vershion should not have such a dull angle.

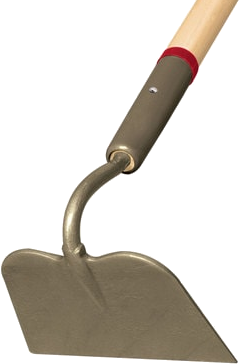

Garden Hoe

Image not found

Pull 25° n/a n/a
Image not found

This is a good selection for weeding in the garden. It is sharp enough that it shears the weeds well at the ground level.

This could be as high as 30°; however that is not usually necessary.

Image not found

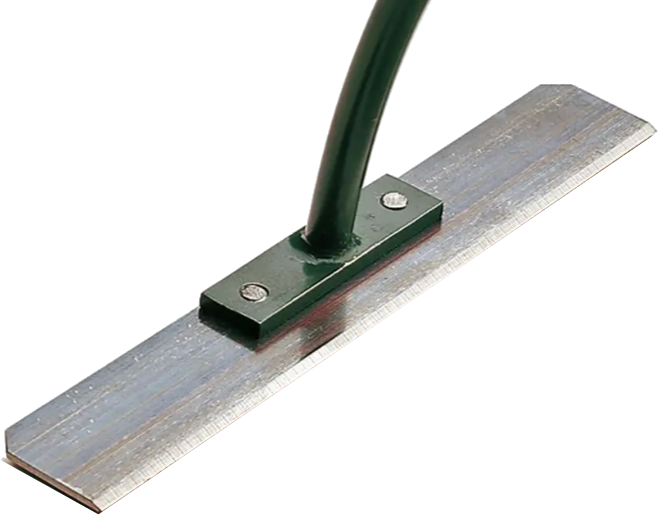

Collinear Hoe

Also known as or called a Drag Hoe or Floral Hoe.


The Collinear Hoe is an interesting, lighter weight variation of this hoe. Use the same sharpening guidance.

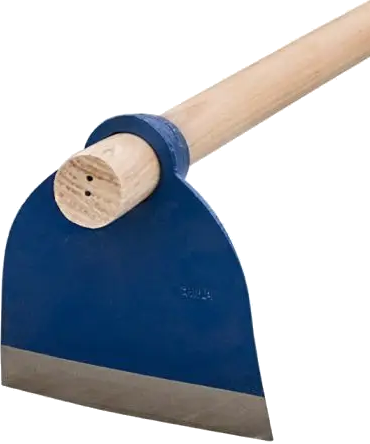

Grubbing Hoe

Image not found

Down Swing
& Pull
45° n/a n/a
Image not found

This is a heavy-duty tool used to break up soil. Depending on the user's area, it may need to have an edge approaching 60° (especially if the ground is rocky or highly compacted).

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. If sharpening the shorter handled hoe, consider sharpening the under side if the angle for use of this hoe merits it.

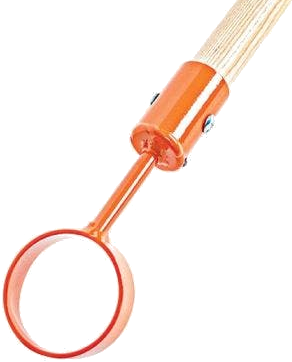

Hoop Hoe

Image not found

Pull & Push 25° 35° n/a
Image not found

The hoop hoe can be sharpened with a single angle, or if the sharpener is adventurous then the sides can be at a different angle (e.g., 30°-35°), and those edges blended together. This would be a good idea if the hoe is used for purposes other than merely weeding. The higher angle will help keep it from dulling quickly when breaking up dirt clods or taking out bigger weeds.

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. If sharpening the shorter handled hoe, keep the same sharpening approach as for the longer handled version (sharpen the inside of the curve).

Image not found

Loop Hoe

It is important to not sharpen too far up on the circle as that part is used to push plants back when hoeing.


There is a variation of this known as a Loop Hoe where the circle is somewhat flattened into a triangular shape (but the triangle’s vertices do not come to a point and are rounded). Use the same sharpening guidance as for the hoop hoe.

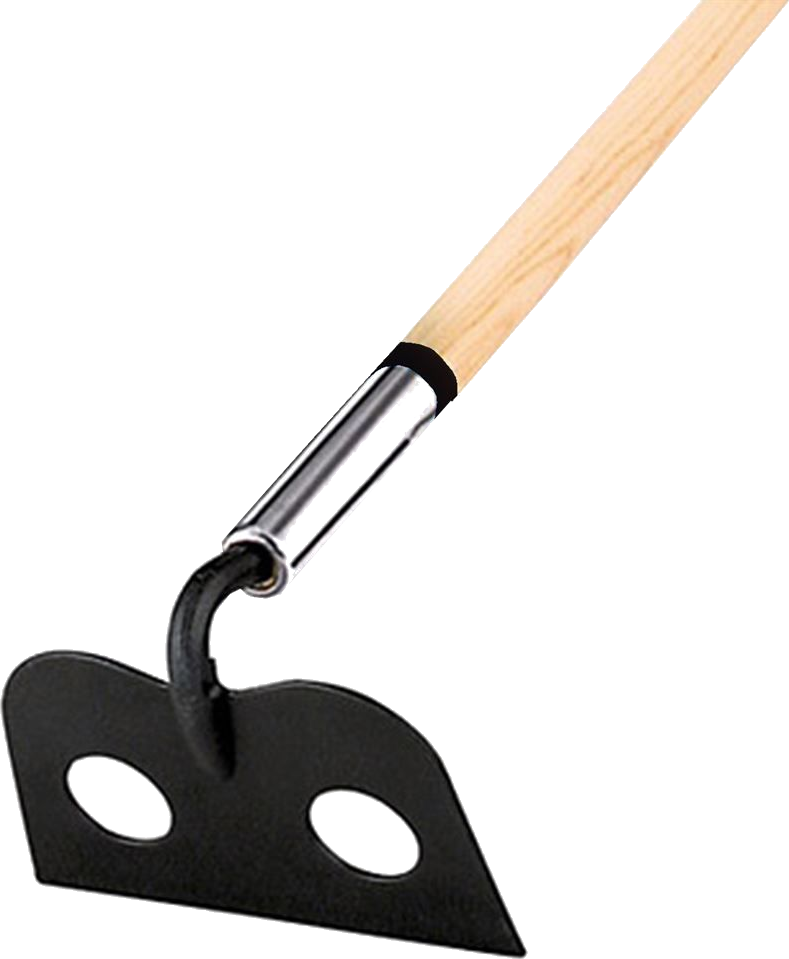

Mortar Hoe

Image not found

Pull & Push 45° n/a n/a
Image not found

This is a good selection if the hoe is used for purposes other than weeding. The higher angle will help keep it from dulling quickly. This could be as high as 60°. Consider this approach if using your hoe for activities such as mixing concrete in your wheel barrow.

Mortar hoes usually have holes in the blade to allow the material to flow through it, making the mixing easier. Ensure these are clear of dried up concrete or other obstructions.

Also known as or called a Mason’s Hoe, or Plaster’s Hoe

Onion Hoe,
& other
3-Sided Hoes

Image not found

Pull & Side 25° 25° 35°
Image not found

These hoes have 3 sides which get sharpened.

  • α1: The bottom is sharpened for typical use.
  • α2: The left side is sharpened to the same angle as the bottom, and is used when the gardener needs to flip the tool on edge to get into a narrow space.
  • α3: The right side has a greater angle to make this a usable tool for also breaking up soil.

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. If sharpening the shorter handled hoe, consider sharpening the under side if the angle for use of this hoe merits it.

Depending on the user's handedness (left vs. right), the values for α2 & α3 could be swapped for easier use.

Also known as or called a Tobacco Hoe

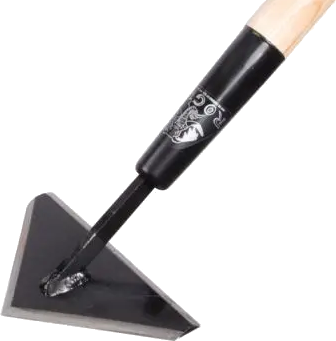

Scuffle Hoe

Image not found

Pull & Push 25° 25° 30°
Image not found

One style of this hoe has 3 sides in a triangular shape, and all 3 sides can be sharpened differently.

  • α1: The user side is sharpened for typical use.
  • α2: The left side is sharpened to the same angle as the user side, and is used when the gardener needs to use the tool with a push stroke.
  • α3: The right side has a greater angle to make this a usable tool for also breaking up soil. If this tool is used only for scarification, then this angle should also be 25°.

Depending on the user's handedness (left vs. right), the values for α2 & α3 could be swapped for easier use.

Also known as or called a Floral Scuffle Hoe


Image not found

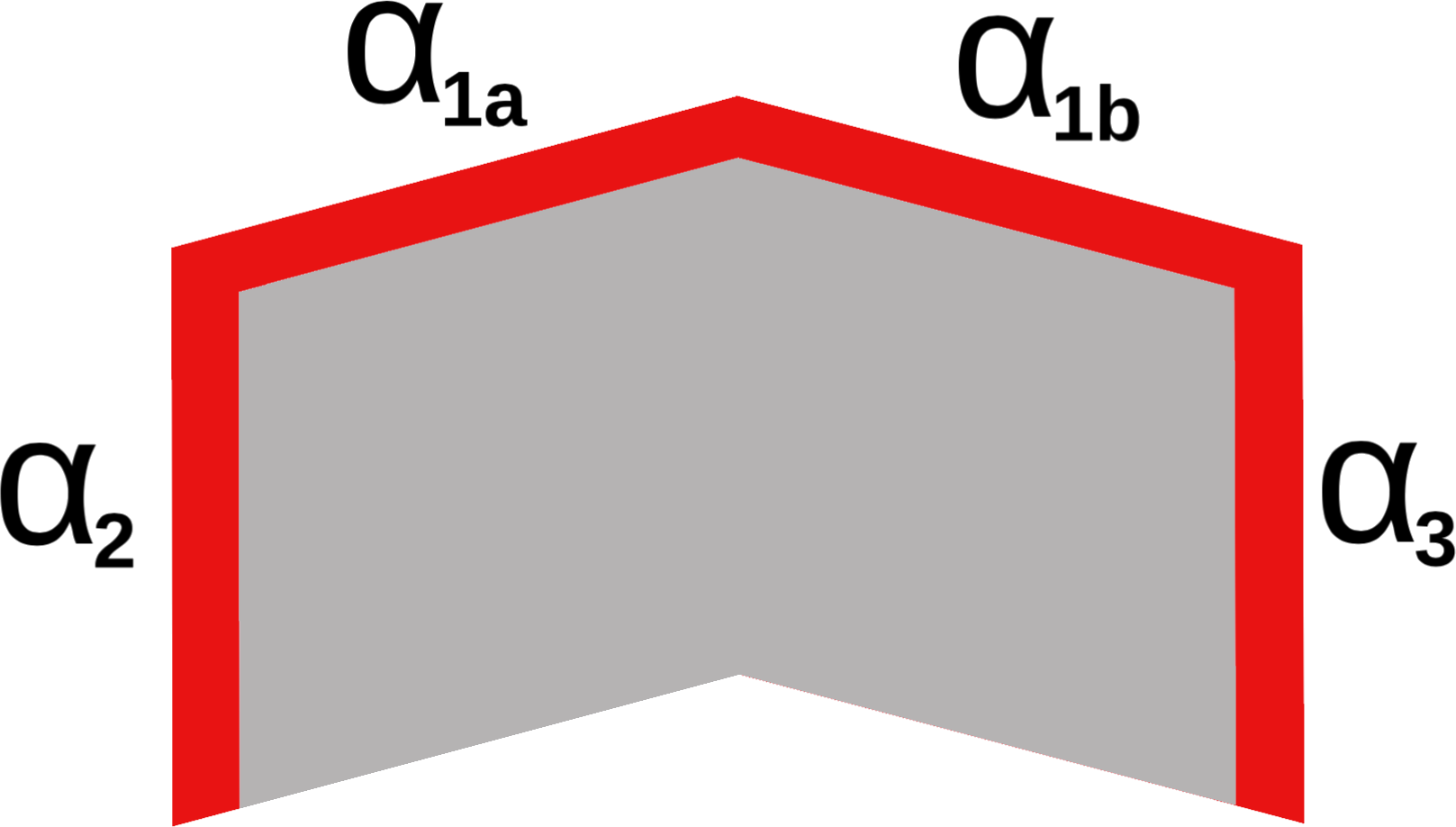

An uncommon style of this hoe has 4 sides in a similar shape, but with 4 sides which are sharpened, and all 4 sides can be sharpened differently. Do note that this hoe is used in a push motion.
  • α1a: The leading edge side is sharpened for typical use.
  • α1b: The other leading edge side is also sharpened for typical use, but can be different from α1a if desired.
  • α2: The left side is sharpened to the same angle as the user side, and is used when the gardener needs to use the tool with a push stroke.
  • α3: The right side has a greater angle to make this a usable tool for also breaking up soil. If this tool is used only for scarification, then this angle should also be 25°.

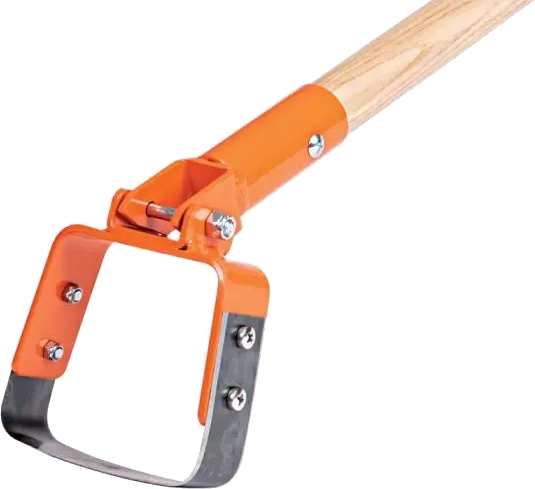

Stirrup Hoe

Image not found

Pull & Push 30° 25° n/a
Image not found

These hoes have 2 sides which can be sharpened differently. If the gardener desires two separate angles, these are recommended

  • α1: The near side is sharpened with a larger angle so the tool can be used for clearing out bigger weeds using the pull stroke.
  • α2: The far side is sharpened to the at a smaller angle to make the push stroke easier when removing typical weeds.

Some gardeners choose to keep the push and pull sides the same as they use a scarifing or shuffling motion to weed the garden or walk.

Image not found

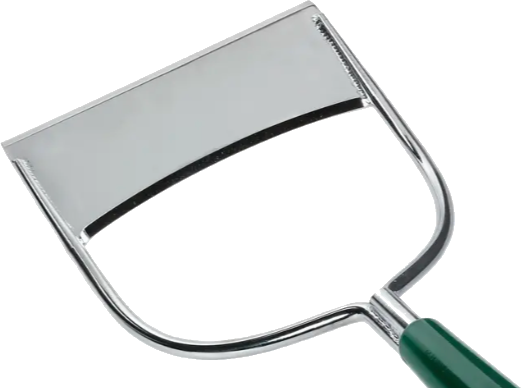

Alternate Dutch Hoe Design

These can be found with a long handle for use when standing, or with a shorter handle for use when kneeling or seated. If sharpening the shorter handled hoe, consider sharpening the under side if the angle for use of this hoe merits it.

Also known as or called a Dutch Hoe. In some cases, the design is not exactly the same, but it is sharpened the same way.

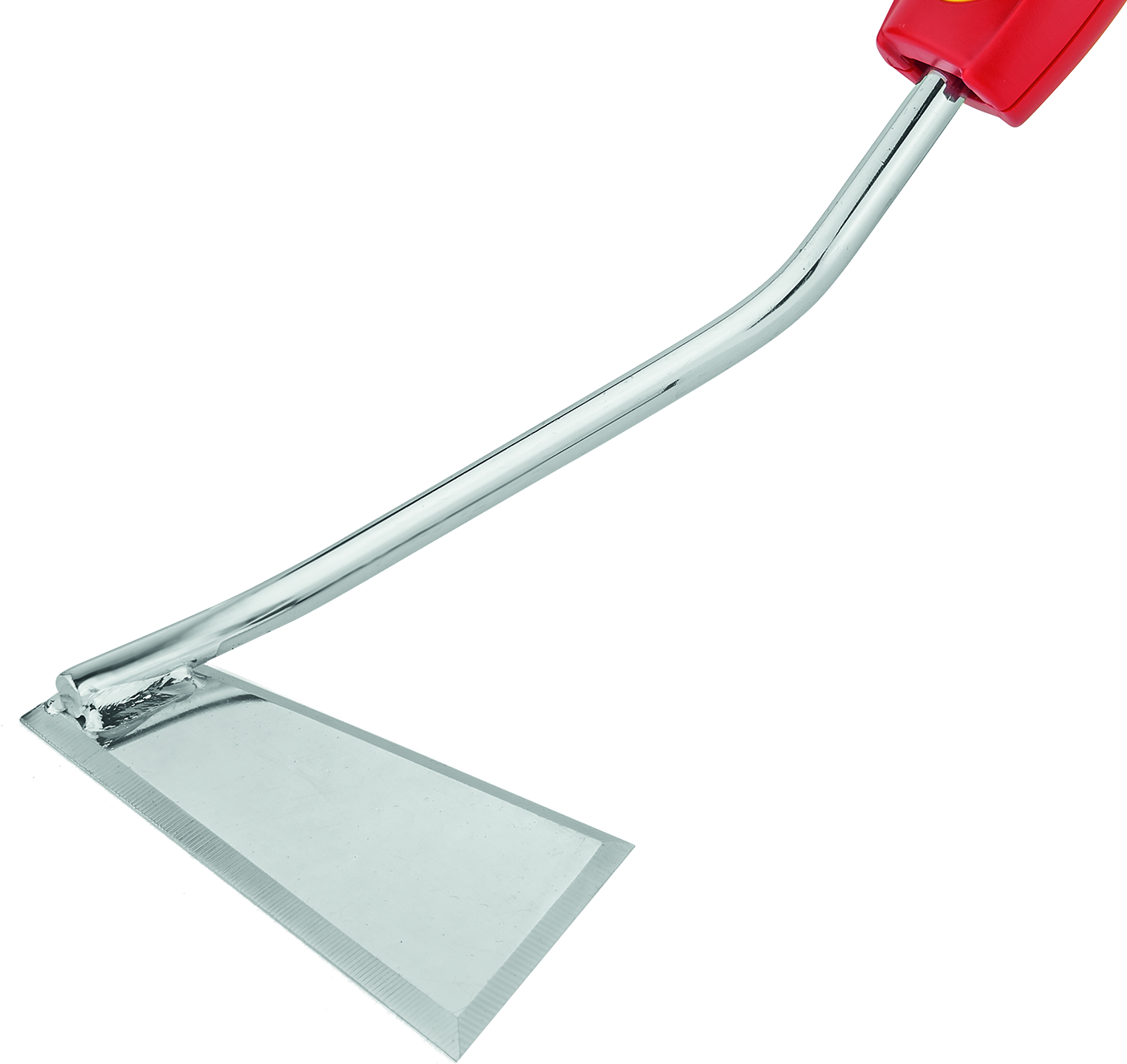

Swoe

Image not found

Pull, Push, & Side 30° 25° 25°
Image not found

These hoes have 3 sides in a form of a triangular shape, and all 3 sides can be sharpened differently. There is a triangular shape towards the user, and a flat side away from the user.

  • α1: The shorter edge on the user's left side is sharpened for a heavier use.
  • α2: The user's right side is sharpened for typical use.
  • α3: The side away from the user is sharpened the same as as α2. This side is used much like the far side on the stirrup hoe.

Depending on the user's handedness (left vs. right), the values for & α2 could be swapped for easier use.

Warren Hoe

Image not found

Pull 25° 35° n/a
Image not found

Warren hoes are typically used for weeding or creating a furrow for planting. This hoe has two edges to be sharpened, opening up some nice opportunities for the gardener as one side can be at a different angle than the other. My experience has been that sharpening one side at the recommended 25° and the other at 35° makes it a more versatile tool.

Depending on the user's handedness (left vs. right), the values for α1 & α2 could be swapped for easier use.

Notes & Comments

Usage Notes

Scarifiers (e.g., shuffle hoes) are used to scrape or scarify the surface rather than dig up the soil. These could be sharpened to a more acute angle as there is minimal chance of encountering any underground rocks. Weeds which grow from seed, like lambsquarters, chickweed, purslane, and some other grasses, should be removed with such a hoe.

The sharpener should consider this and might reduce the angle for α by 2° to 5°, but in any case, the angle should not be reduced below 25°.


Deep Diggers (e.g., cobrahead hoes) are used to attack perennial weeds and need a different sharpening approach. For weeds like burdock, yellow dock, and quackgrass that have either strong taproot systems or rhizomatous roots, you'll need to get a bit dirty. After a rain shower and when the soil is moist, get down onto the ground and dig them out using a tool like a CobraHead hoe.

The sharpener should consider this and should increase the angle for α by 2° to 5°, but in any case, the angle should not be reduced below 40°.


Shaping the edge

New hoes I have purchased have an angle (α) of 90°. Therefore, initial shaping of the edge is to be expected.

If you use an angle grinder, consider using a 120 grit flap disc. A metal grinding wheel may be needed for large-scale shaping. In either case, be sure to not overheat the metal too much: it weakens the metal.


Sharpening the edge

Use a machinist’s hand file.

  1. Start with a 12-14" bastard file (as necessary).
  2. Next, continue with a 8-10" medium (or second) cut file.
  3. Finish with a 6" smooth cut file, then use this file to remove the burr.

More Information

Books & Papers


Some pictures are courtesy A.M. Leonard Horticultural Tool & Supply.
