Sharpening Handbook - Calculations used for
calculating SVM Knife Projection
Because sharp enough
... usually is not.

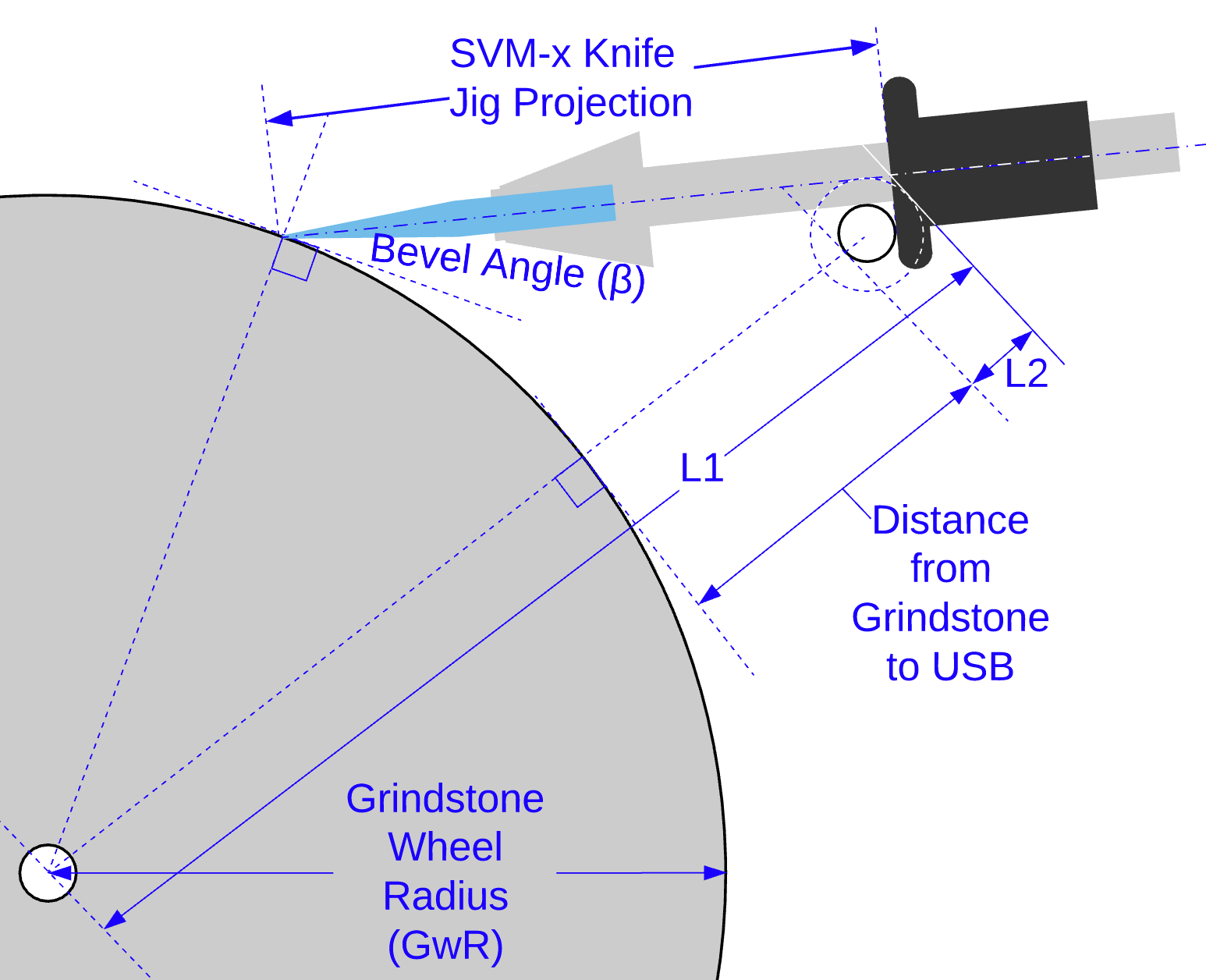

Definitions
  1. Grindwheel Radius (GwR) = Grindwheel Diameter / 2

  2. SVM-x Knife Jig Projection = SVMxP
Assumptions
  1. USB diameter (USBD) = 12mm
    USB radius (USBR) = 6mm

  2. SVMx shaft diameter (SVMxD) = 12mm
    SVMx shaft radius (SVMxR) = 6mm
Calculations
  1. L12 = SVMxP2 + GwR2 - 2(SVMxP x GwR x cos(β + 90))

  2. L2 = SVMxR + USBD = 18mm

  3. Distance from Grindstone to USB = L1 - L2
